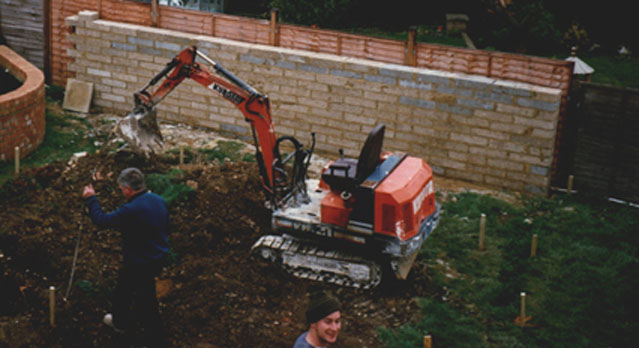

Digging the hole
As you can see the pond was
built using 9" hollow concrete blocks this was put down on a 9" concrete bed
which had reinforced steel running through it and up the walls.

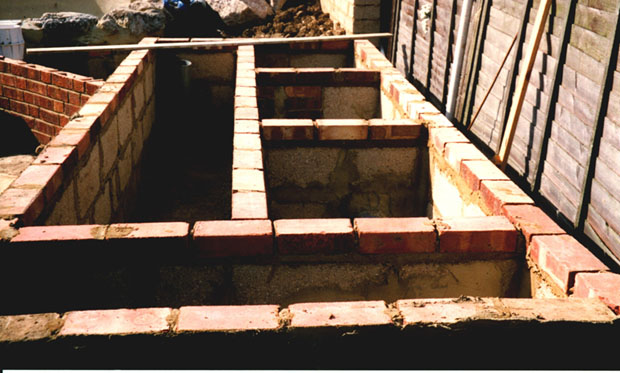

The Filter Chambers
Here you can see the mid-water
feed and Skimmer, this works off the ITT Marlow pump with a three-way valve between, which
controls how much is drawn through the filter and the Skimmer.
Electronic mail address
ghoward@globalnet.co.uk
|
|
The
pond was built in 1992 and is 5000 gallons. It is run using a one horsepower ITT Marlow
pump with a 24" sand filter. There is one 30 watt UV and a 50,000 BTU Gas Heater with
a Heat Exchanger.

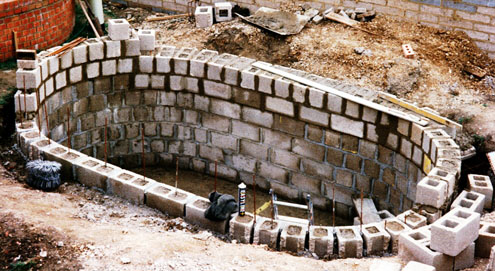

Building the Walls
There are two Bottom drains
with 4" pipe work going to the filters. The Filters consist of a long
settlement Chamber followed by 3 Bays of media. One of brushes and two of Japanese
Matting. Each chamber has a bottom drain, which is directed, to the end chamber to waste.
Mid-Water Feed, Skimmer &
Ventri return

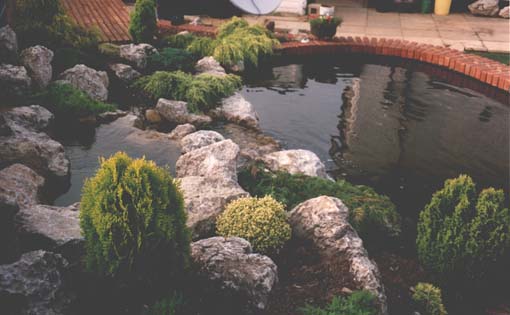

The pond is some six years old now and has
settled down. There are about 30 Koi swimming around within it's depth up to 30 inches.
The pond Boiler has Just packed up on me and I am looking to put in a domestic one with a
heat exchanger. I hope this gives you something to think about if you're building
your own pond.
