Self-Contained Inkjet Printers

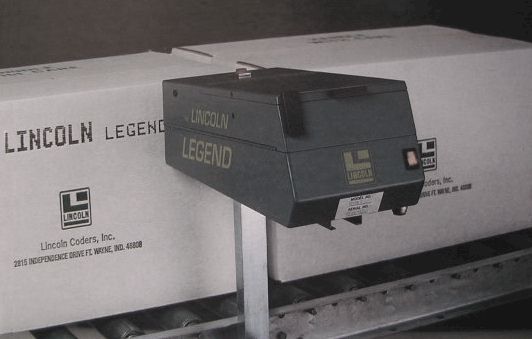

We recommend the American Made 'Lincoln Legend' range of
Totally Self-contained Large Character Ink Jet Printers.

TECHNICAL DETAILS AND SPECIFICATIONS
FOR 3 POPULAR LEGEND MODELS

LEGEND 5 . . .

Power Requirements:   115+- 10% volts AC-6OHz, 300 watts max. Other voltages: 240 VAC at 50Hz. A dedicated power supply with an optional isolation transformer may be required for optimum performance.

Operating Power:  Less than 24 volts

Operating Speed:  Prints at rates up to 30m(100ft)/min standard depending on system set-up conditions.

Character Font:    5 x 5 dot matrix.

Operational Variables:  Product delay, character width, dot size, real time clock, Julian date, message selection, box count, time and date change, individual valve settings.

Character Set:  Full ASCII 64 character upper-case set; 39 characters per message line standard.

Print Direction:  Forward and/or reverse.

Character Size (height): 13mm(1/2")

Ink System Capacity:  One-litre disposable ink container.

Dimensions:    300mm L x 150mm W x 100mm H (12" x 6" x 4")

Shipping Weight:    9 kg (20lbs).

LEGEND 7 . . .

Power Requirements:  115+- 10% volts AC-6OHz, 300 watts max. Other voltages: 240 VAC at 50Hz. A dedicated power supply with an optional isolation transformer may be required for optimum performance.

Operating Power:   Less than 24 volts

Operating Speed:  Prints at rates up to 30m(100ft)/min standard depending on system setup conditions.

Character Font:  7 x 5 dot matrix or 7 x 10 dot matrix in bold mode.

Operational Variables:  Product delay, character width, dot size, real time clock, message selection, box count, time and date change, individual valve settings.

Character Set:  Full ASCII 64 character upper-case set; 39 characters per message line standard.

Print Direction:  Forward and/or reverse

Character Size (height):  6 sizes available: 9mm(3/8") 13mm(1/2"); 20mm(7/8"); 30mm(11/4"); 40mm(11/2") and 50mm(2")

Ink System Capacity:  One-litre disposable ink container

Dimensions:    300mm L x 150mm W x 100mm H  (12" x 6" x 4")

Shipping Weight:    9 kg. (20lbs)

LEGEND 11 . . .

Power Requirements:  115 volts AC (+- 10 volts) at 60Hz, 230 watts max. Other voltages: 240 VAC at 50Hz. A dedicated power supply with an optional power conditioner may be required for optimum performance.

Operating Power:   Less than 24 volts

Operating Speed:  Prints at rates up to 30m (100ft)/min depending on system set-up conditions.

Character Font:  5 x 5 dot matrix, 5 x 10 dot matrix in bold mode 7 x 5 dot matrix, 7 x 10 dot matrix in bold mode 11 x 6 dot matrix, 11 x 12 dot matrix in bold mode

Operational Variables:  Print direction, product delay, character width, dot size, shift code change, expiration date changes, real time clock, message selection, box count, automatic time and date change, print line selection, pallet count, omit slash from character zero option, language options, individual valve output adjustments.

Character Set:  Full ASCII 64 character upper-case set. Up to 39 characters per message line.

Language Options:  User friendly software offers a choice of six languages. instructional menus and other informative screens may be displayed in English, Spanish, Italian, French, German and Dutch.

Print Direction:   Forward or reverse

Memory:  Up to 177 message memory locations.

Character Size (height):  5 x 5 matrix is 9mm (11/32")_which provides overall character height of 10mm(7/16"). 7x5 matrix is 13mm(1/2") which provides overall character height of 16mm(5/8"). 11 x 6 matrix is 21mm(13/16") which provides overall character height of 24mm(15/16"). Overall character height may vary due to dot size setting and porosity of the substrate used.

Ink System Capacity:  One-litre disposable ink container

Dimensions:  305mm L x 153mm W x 102mm H   (12" x 6" x 4")

Shipping Weight:    9 kg(20lbs)
