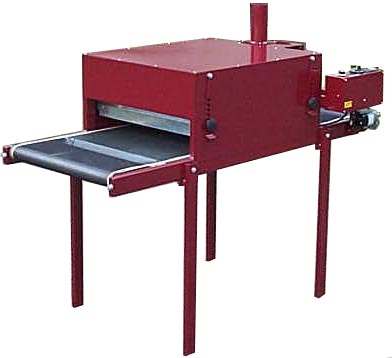

The new Mini Dryer
| A new small dryer for hand-printers printing with plastisol inks.
This compact, low cost, high quality dryer is ideal for setting up a t-shirt print-shop on
a limited budget. The Panther Mini dryer has all of the main user friendly features that the Panther 700 Texi-tunnel has - it is just smaller and less expensive |
|
|
|
Specifications |
Ø Total Length
1.6m Ø Conveyor Inlet 42cm Ø Conveyor Outlet 38cm Ø Heater Width 51.5cm Ø Conveyor Belt Width 60cm |
Power Requirements (Maximum) |
Ø 1 Phase 220V, 19 Amps Ø 1 Phase 240V, 21 Amps Ø 3 Phase 380/415V, 7 Amps per Phase |
| Features | Ø Ceramic heating elements Ø Element height adjustment Ø Exhaust fan Ø Conveyor belt speed 0 to 3.2 metres per minute Ø Digital temperature control 0 to 450*C |
Production Capacity |
Ø Standard plastisol inks- 300 t-shirts per hour Ø Low temperature plastisol inks - 360 t-shirts per hour |
